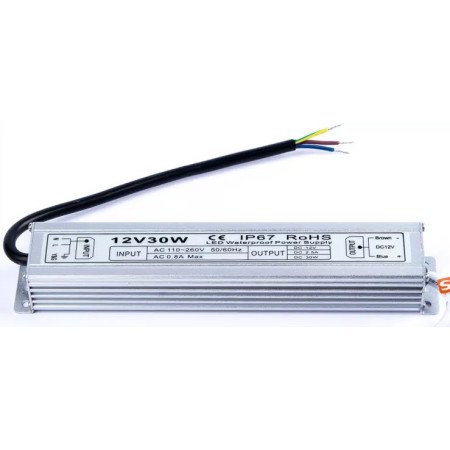

Product description

• 	Power	30W
  OUTPUT	Model	ST120105230W
  	DC Voltage	12V
  	RATED CURRENT	Max 2.5A
  	CURRENT RANGE	0~30W
  	RATED POWER	30W
  	RIPPLE & NOISE	120mV
  	VOLTAGE TOLERANCE	± 2%
  	LINEAR REGULATION	± 1%
  	LOAD REGULATION	± 1%
  	Start-up TIME (typ)	500ms/230VAC
  	HOLD UP TIME(Typ.)	100ms/230VAC
  INPUT	VOLTAGE RANGE	100V-264VAC
  	FREQUENCY RANGE	50~60Hz
  	POWER FACTOR (Typ.)	PF>0.60
  	EFFICIENCY (Typ.)	.>83%
  	AC CURRENT(Typ.)	0.45A/230VAC
  	No-Load Power Consumption	<3W
  	Input Current	0.28A/230VAC
  PROTECTION	SHORT CIRCUIT	Recovers automatically after fault condition is removed
  	OVERLOAD	Overload Protected @ 110-130% above Peak rating
  	OVER TEMPERATURE	Shut down o/p voltage, re-power on to recover
  ENVIRONMENT	WORKING TEMPERATURE	-30-+50℃(Refer to output load derating cure)
  	WORKING HUMIDITY	20 ~ 99% RH non-condensing (waterproof)
  	STORAGE TEMP. HUMIDITY	-40~+80℃, 10~95%RH
  NOTE	1. All paramenter Not specially mentioned are measureed at 230vac input, rated load and  25℃ of ambient temperature,
  	2. Ripple & noise are measureed:Connect 0.1uf & 47uf capacitorat in parallel at the terminal, and measure under 20MHz of bandwidth.
  	3. Eusurethat the power supply is used under the rated parameters and enviroment

1.All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a12'' twisted pair-wire terminated with a 0.1uf 10uf parallel capacitor
3.Tolerance: includes set up tolerance, line regulation and load regulation.
