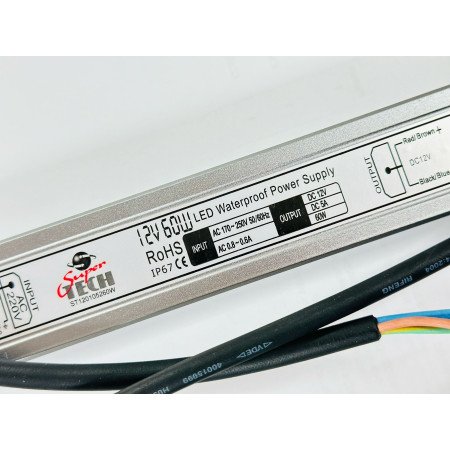

LED Strip LightsPower Supplys12V60W 12V Power Supply Adapter DC Transformer waterproof IP67 for LED Strip 12V 5A
Maximize
Customers who bought this product also bought
14 other products in the same category
Product description
- Wattage: 60.0
- Dc Voltage:12V
- Rated Current:5A
- Current Range:0-5A
- Rated Power:60w
- Ripple&Noise(Max):200mV
- Setup,Rise Time:100ms/220VAC
- Voltage Range:170~250VAC
- Power Factor(Typ):PF>0.9
- Efficiency(Typ):84%
- Working Temp:-30~ +60C(Refer to output load derating curve)
- Working Humidity:20~90%RH no-condensing (Waterproof)
- Safety Standards: CE Mark(LVD),IP67
NOTE:
1.All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a12'' twisted pair-wire terminated with a 0.1uf 10uf parallel capacitor
3.Tolerance: includes set up tolerance, line regulation and load regulation.
